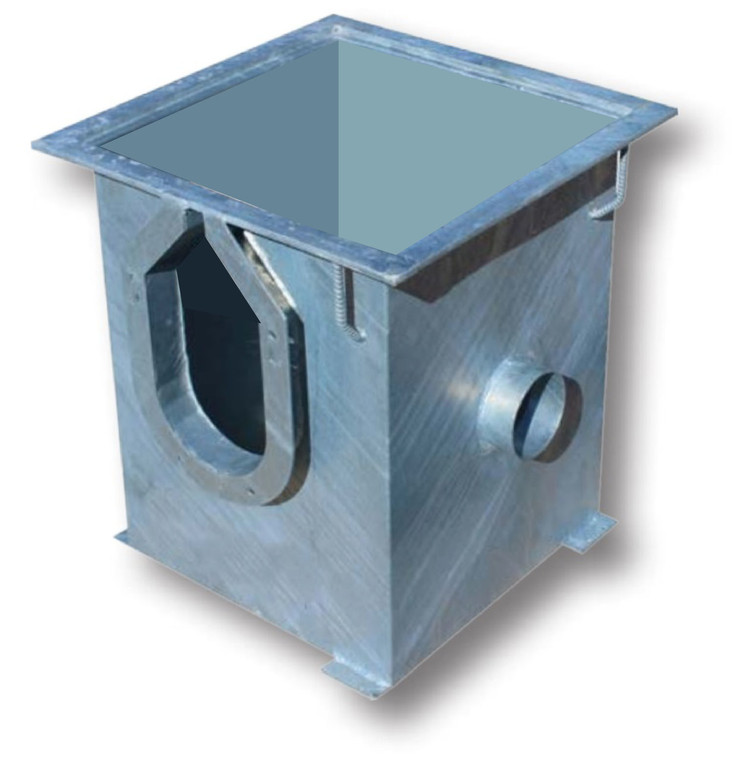

Norstar (U-Drain) #11694 Commercial Galv. 18" x 18" x 24" Sump Pit with 1 Inlet and Basket
Norstar (U-Drain) #11694 Commercial Galv. 18" x 18" x 24" Sump Pit with 1 Inlet and Basket
Norstar (U-Drain)Contact your sales representative or store for pricing and more information
(No reviews yet)
Norstar (U-Drain) #11694 Commercial Galv. 18" x 18" x 24" Sump Pit with 1 Inlet and Basket
There are a variety of optional components available for your U-drain system including a wide range of sump pits with various sizing and intake options (single, double and triple inlet models available); oil separator sump units; checkerplate, grated or slotted lids and more.
- U-drain is a SIMPLE, LOW MAINTENANCE, and COST-EFFECTIVE solution for concrete floor drainage.
- This NON-GRATED, PRE-ENGINEERED TRENCH DRAIN is installed into a concrete floor and designed to remove surface water through a single slot that opens into a trench which directs drainage to a connected sump.
- The basic U-drain system consists of pre-sloped and/or neutral sections, an adapter plate/end cap and a sump. Each of these components is bolt-together to provide USER-FRIENDLY ASSEMBLY AND INSTALLATION.
- INSTALLED INTO A FLOOR GRID PRIOR TO CONCRETE BEING POURED, the U-drain system connects directly to the rebar grid. The drain can be used as a center screed when pouring concrete. Once the concrete has been poured, the narrow slot opening is level with the floor, creating an aesthetically pleasing low-profile intake.
- U-drain is available in RESIDENTIAL AND COMMERCIAL FORMATS, each being fundamentally the same, but with unique features that allow for a large variety of applications ranging from home garages to aircraft hangars.
Residential U-drain
Residential U-drain is designed for small scale drainage applications ranging from home garages to driveways. Residential U-drain comes in standard 5" lengths. These sections are not pre-sloped due to most residential applications requiring less overall length for drainage to travel. The residential system features an ADA compliant 1/2" slot opening that is able to handle anything from snow melt to washing a car indoors. This slot acts as the intake for the drainage to enter the trench and make its way to the sump pit. The standard residential sump size is 12" x 12" x 12" with larger sizes and multiple inlet options available.
For More Information on U-Drain Systems, such as Installation. PDF Data Sheet
