EZG Hog Pump

Multi-Use Delivery Systems

Built to be rugged, robust and reliable, EZG's line up of pumps handle most types of construction material with ease. Designed specifically for grout, mortar and concrete, the line-up offers both skid-steer and trailer hitch models for easy transport to and from job sites. With four different models to select from, each built to suit the budgets, reach and transport needs of just about any contractor, EZG's got a hog for everyone.

HP-20T4 Features:

• Ideal for filling block walls with grout or pea gravel; handles grout, mortar and concrete
• Plus 1 control system with a DM430 Digital display for diagnostic & monitoring
• Pumping distance of 800 ft. (244 m) horizontal and 200 ft. (61 m) vertical
• Handles up to 3/4" (20 mm) aggregate
• Features an 8 cu.ft. (225 L) hopper
• Delivers up to 18 cu.yd. (13.8 m3) per hour with a 2" (50 mm) line
• Fully-reversible S-Tube valve for increased ease and safety over “ball valve” designs
• Optional wireless remote option for operator convenience and safety

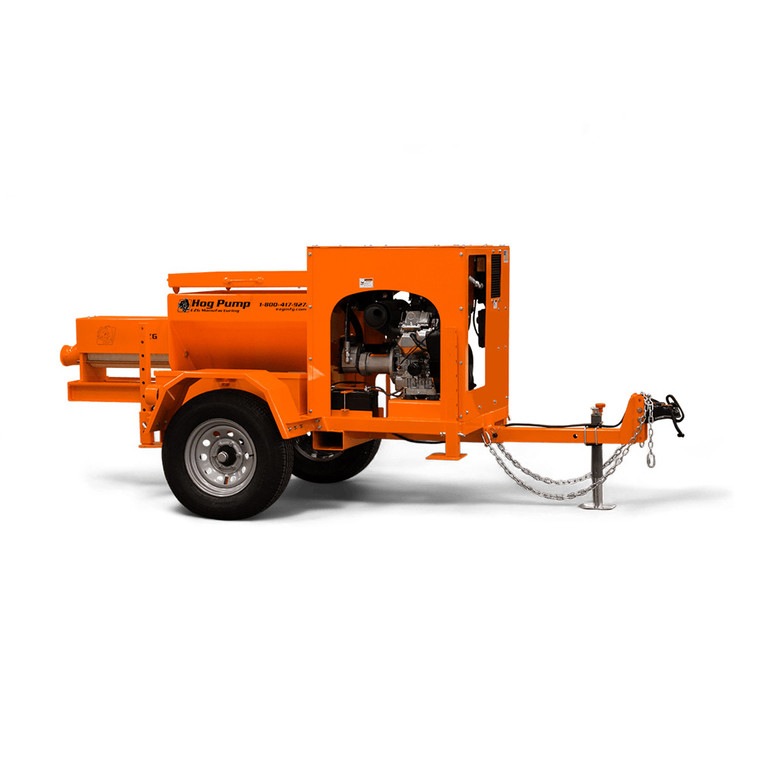

HP-38 / 38SM / 38SS Features:

• Handles self-consolidating, 3/8" ready mix and light-weight concrete as well as masonry grout, pour & form; shotcrete and slurry.
• Progressive cavity pumping with variable speed hydraulics and reversible functionality
• Handles 3/8" (10 mm) pea gravel
• Features an 8 cu.ft. (225 L) hopper
• Delivers up to 10-15 cu.yd. (7.6 - 11.5 m3) per hour with a 2" (50 mm) line
• Diesel and electric power supply options

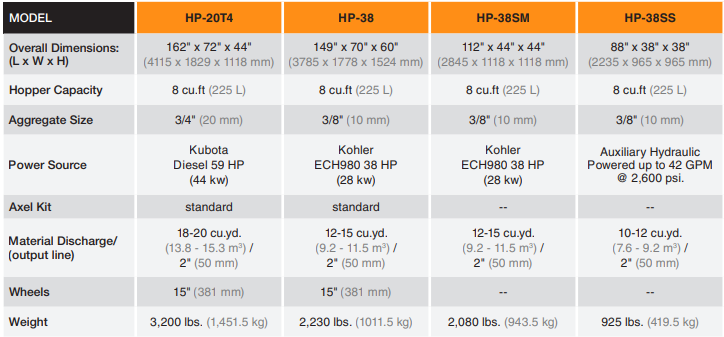

Hog Pump Specifications
